Cryogenic valves in different types and series Valve serie Novis 500, Sticks 900 et Univers 1600
Stöhr products are charcterised by:
Customer oriented solutions

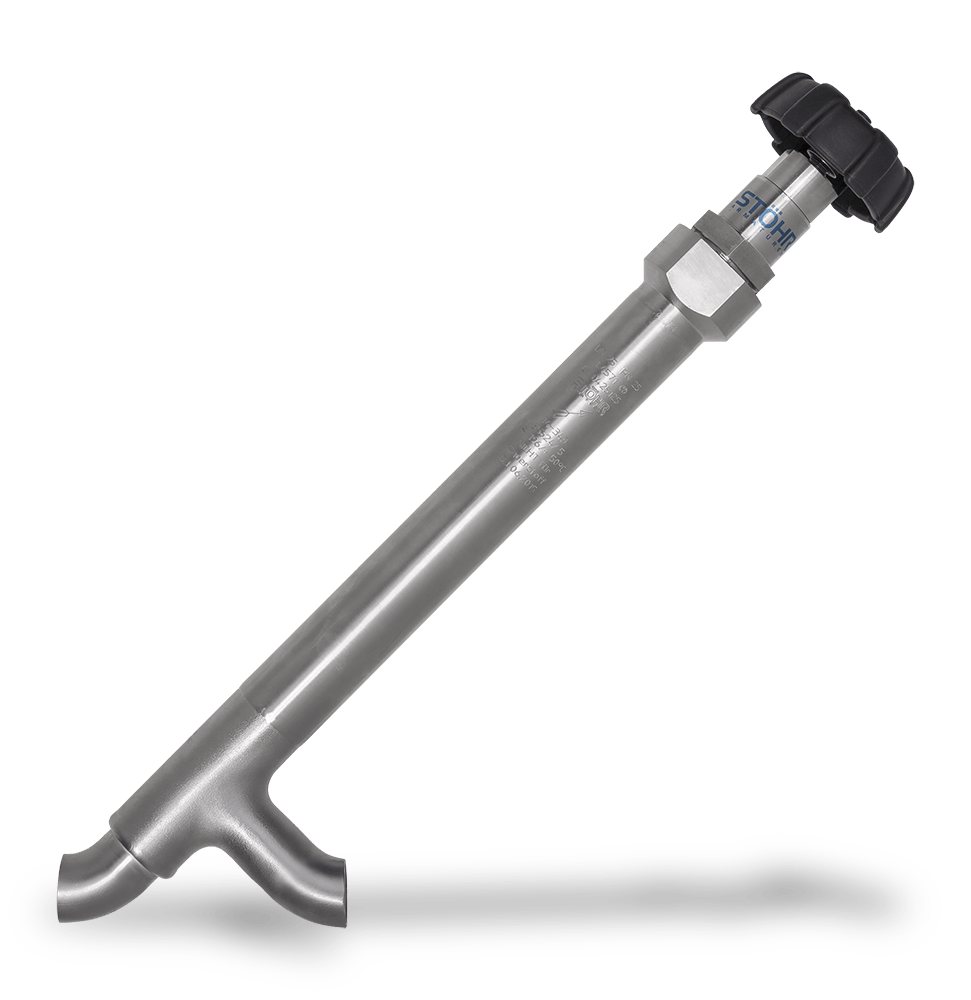

Manual cryogenic valve Novis 500 The cost-effective valve series for cryogenic applications
The Novis valve series 500 from STÖHR ARMATUREN offers a standardised and cost-effective valve for cryogenic applications for liquid nitrogen temperature (77 K / -196 °C). The series has been designed for applications that do not require the complexity of vacuum jacketed installation.

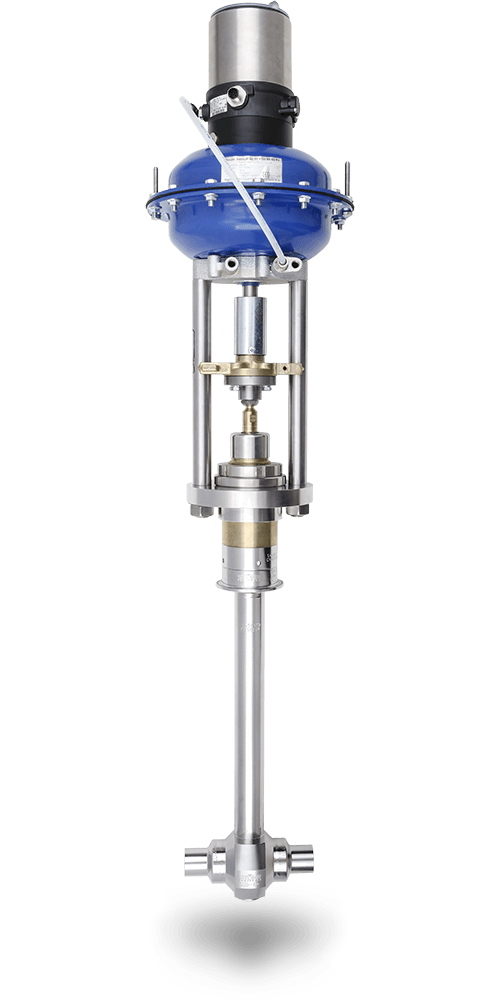

Cryogenic control valve diaphragm actuator Sticks 900 The high quality stainless steel regulation valve for gaseous and liquid media
Straight or angle valve configuration with stainless steel bellow for long life and high leak-tightness to outside. The valve body is machined from one piece of solid stainless steel. End connections can be supplied in butt-welded execution or according to customer specification. Installation position up to 30° vertical.

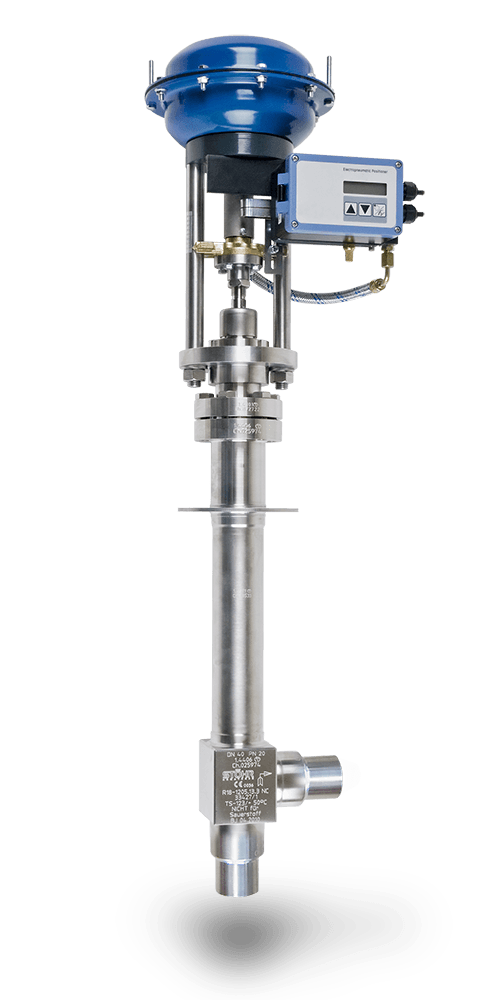

Pneumatic cryogenic control valve Univers 1600 The well-tried and reliable type for on-off valves and non-return valves.
The seat seals are selected according to the service fluids requirements in order to meet the customer’s specification. The way of actuating and the type of actuator is optional. Modifications like purge ports, leak detecting ports etc. are optional.
